The Time Windows are used to specify different time zones of each of our channels. This will allow or reject specific content to be scheduled in specific intervals of time based on the audience target (such as protected time, prime time, etc.).

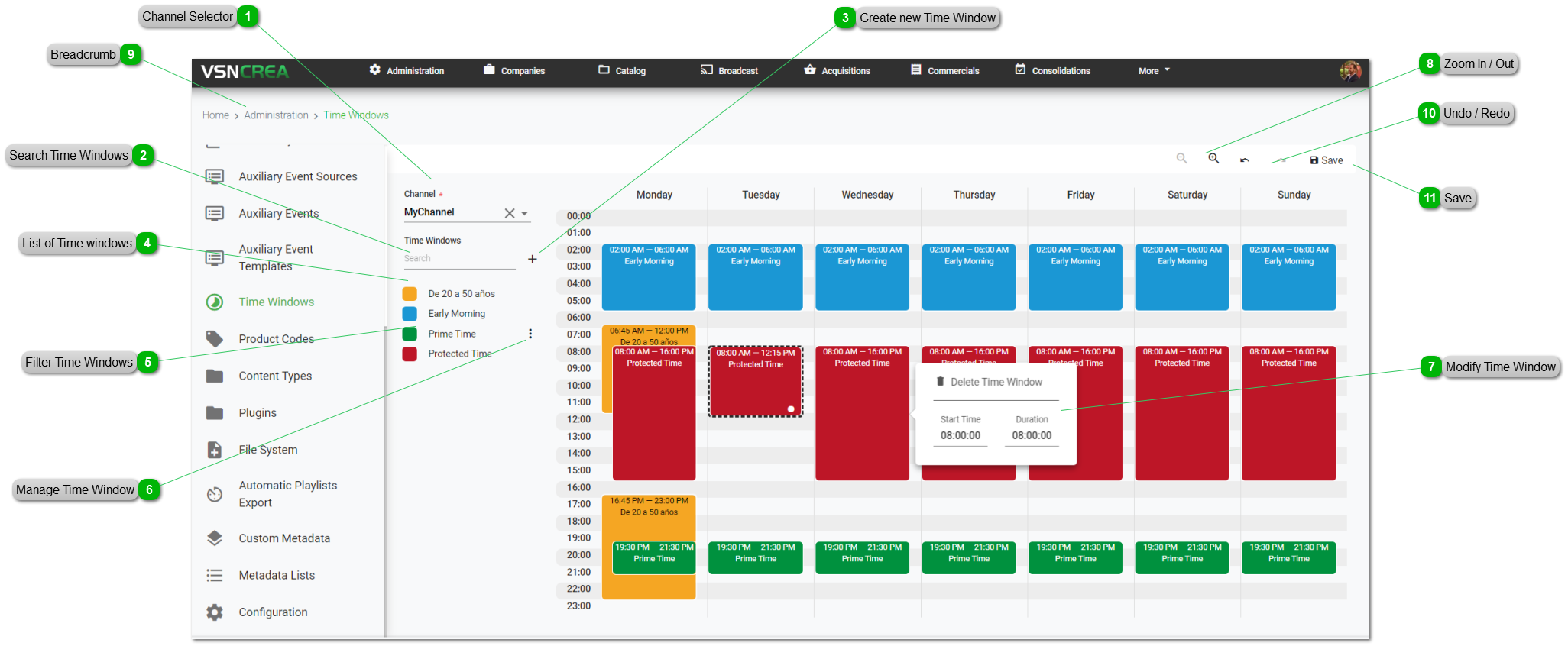

Channel Selector
Select the channel you want to view. This will enable the current Time Windows view for the selected channel.

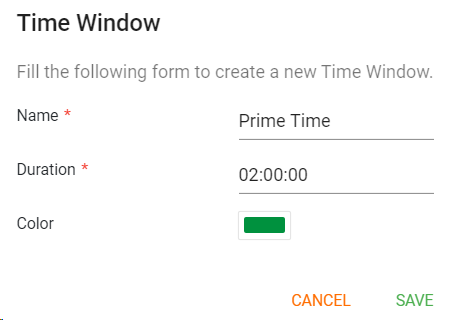

1. Click to create a new Time Window in the selected channel. This will open a dialog to introduce:
Name. Specify a name for the new Time Window.
Duration. Specify an initial duration of your Time Window (HH:MM:SS)
Color. Optionally you can set a colour to easily identify the Time Window in the weekly view
The new Time Window will appear in the list of Time Windows of the selected channel. Once finished, click "Cancel" to cancel or "Save" to save the modifications

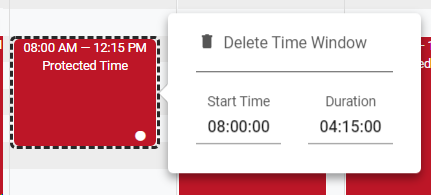

2. To add a Time Window in the weekly view, just drag % drop it. Once in the weekly view, you can change the duration of the Time Window instance.
to create a new Time Window in the selected channel. This will open a dialog to introduce:
button and "Modify"

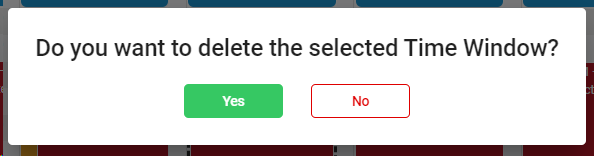

If the element you want to delete has dependences , it won't be deleted and the system will show you a list of existing dependences
to zoom in, or
to zoom out the weekly view, in intervals of 15 minutes each time.
or redo
as many times the changes done in the Time Windows of the weekly view.
