The Graphic Objects are the different graphics existing in the CG (Lower Thirds, Tickers, etc.). You need to create this graphic objects in VSNCrea in order to be launched by the Automation.

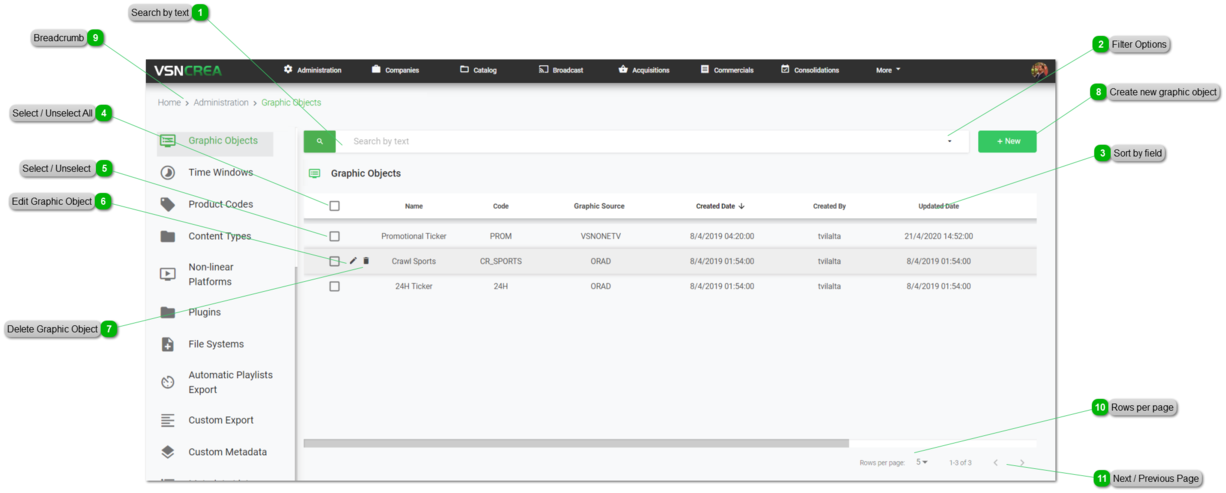

In this section, you will learn how to create graphic objects. To do so , go to Administration >> Graphic Objects
Search by text
Start typing a text and click Enter. The system will show you the results matching with your query

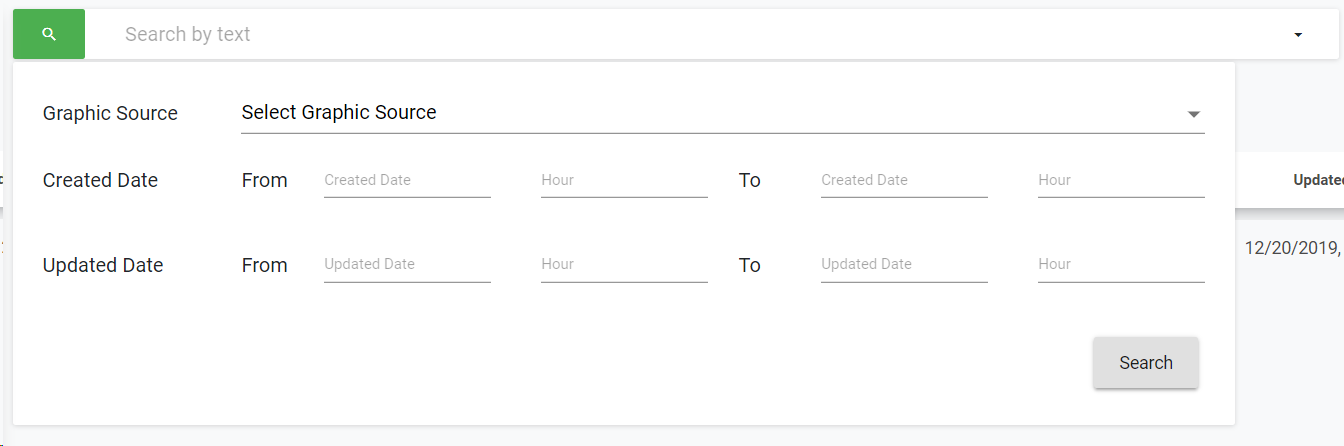

Click the drop down menu to display the filtering options. You can filter the graphic objects by their graphic source. Select your filters and click on the "Search" button.

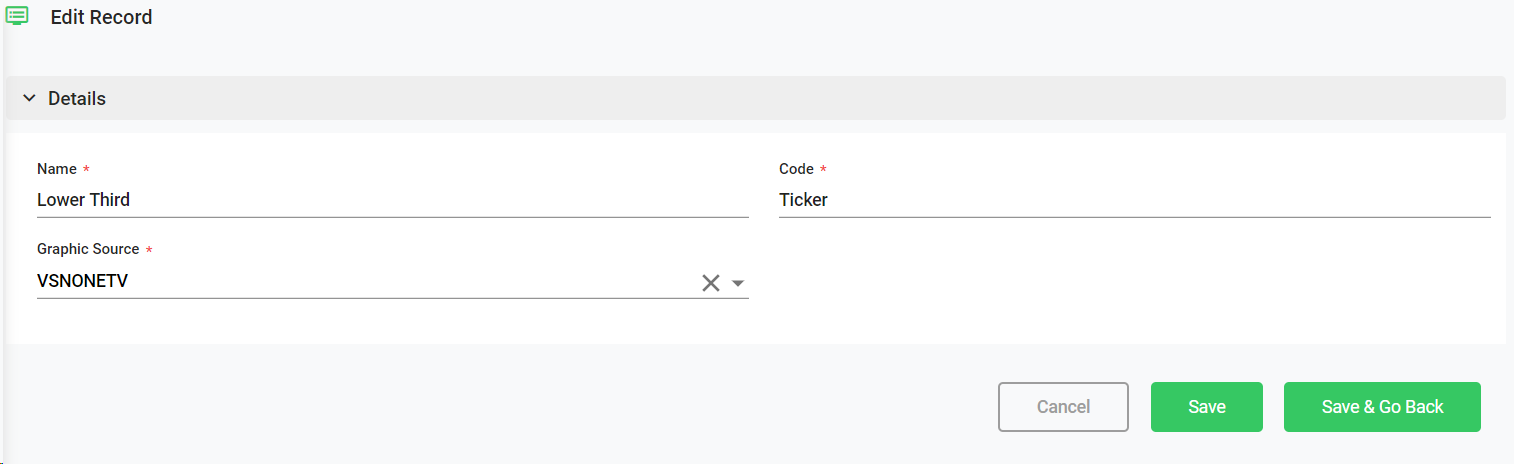

This will open the metadata form, to edit all the available metadata fields:
To cancel the edit, click "Cancel". To save the changes and keep in the edit form, click "Save". To save the changes and go back to the previous list, click "Save & Go Back".
Click on this button to create a new graphic object.

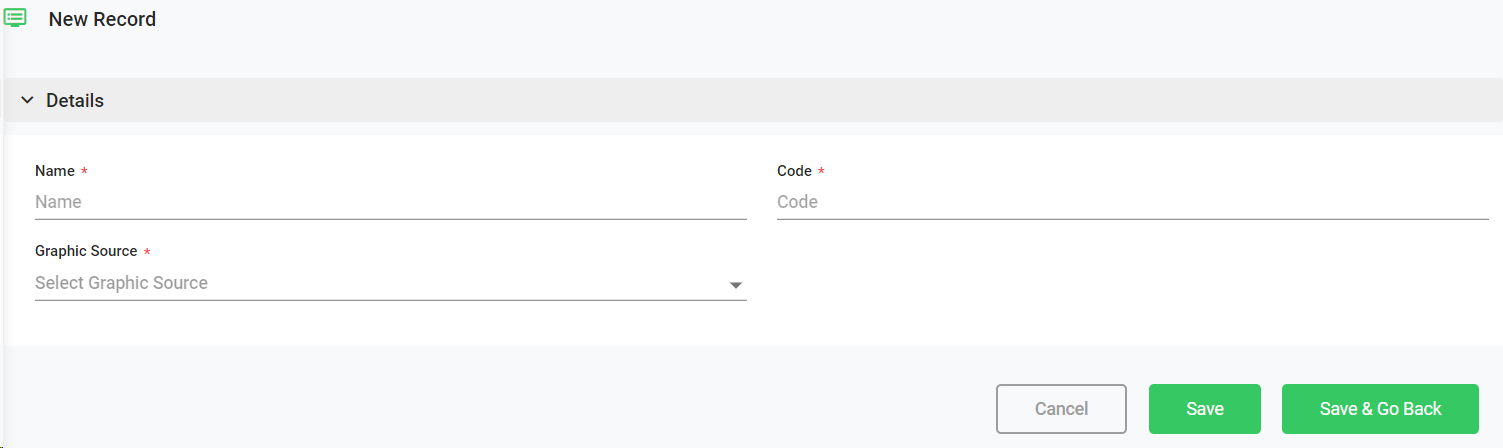

This will open the metadata form, where you must introduce (at least) the mandatory fields.
Name. Name of the graphic objectt (for example: "Lower Third", "Next Program")
Code. This is the internal code of that specific graphic object that should map with the code of the graphic in the corresponding CG system.
Graphic Source. Select the graphic source (CG) corresponding to this graphic object. For more information, go to Graphic Sources
To cancel the operation, click "Cancel". To save the changes and keep in the creation form, click "Save". To save the changes and go back to the previous list, click "Save & Go Back".
to clear the value and remove the filter.
For more information, go to
or descending
icon;
icon
to delete the selected users, or
to cancel the operation.

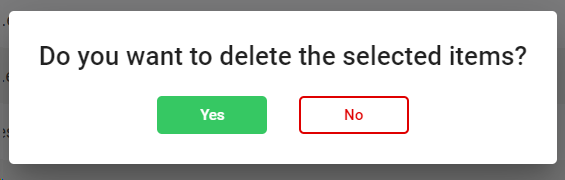

If the element you want to delete has dependences , it won't be deleted and the system will show you a list of existing dependences
to go to the previous page or
to go to the next page
