How to manage consolidations



In this section you will learn how to make the consolidation between the broadcasted events and the scheduled ones for one specific day, based on their Media Id.  This is the way how the users will validate each daily broadcast.

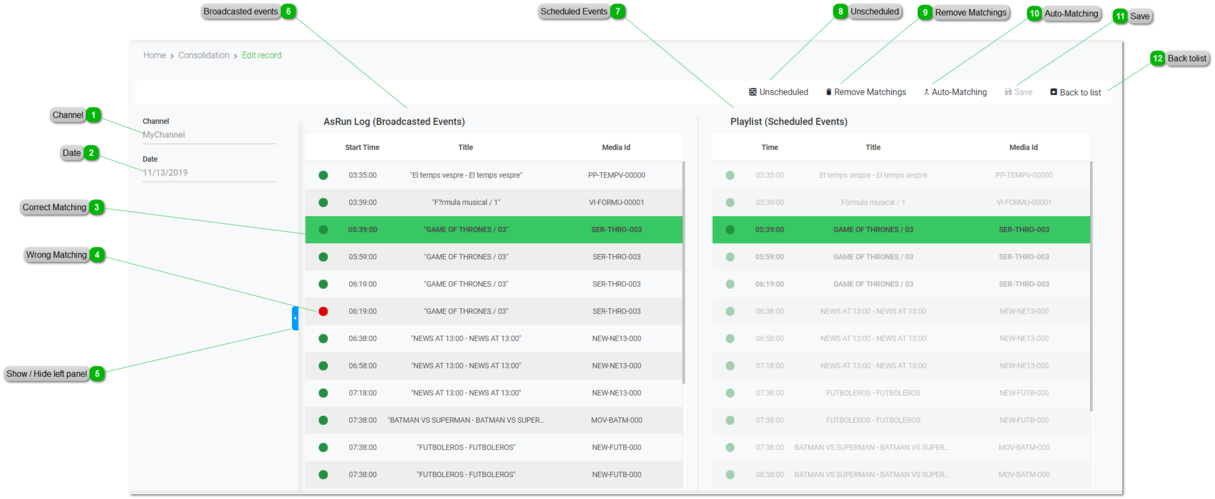

How to manage consolidations

1

Channel

1. Channel

Name of the channel corresponding to the current consolidation.

2

Date

2. Date

Date of the current consolidation.

3

Correct Matching

3. Correct Matching

As soon as we are scheduling showings in the current Service Order, this value will automatically indicate the number of scheduled showings and the total price.

4

Wrong Matching

4. Wrong Matching
<TODO>: Insert description text here...
5

Show / Hide left panel

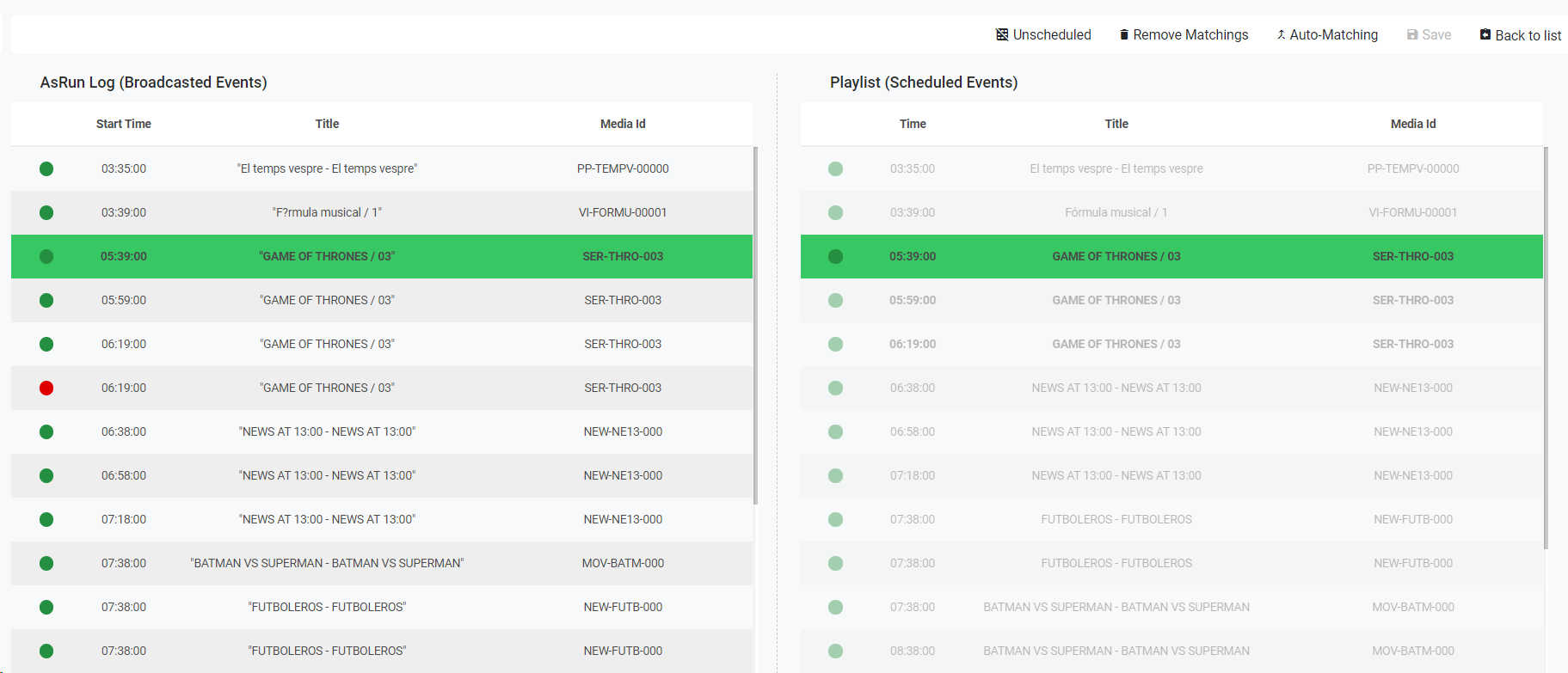

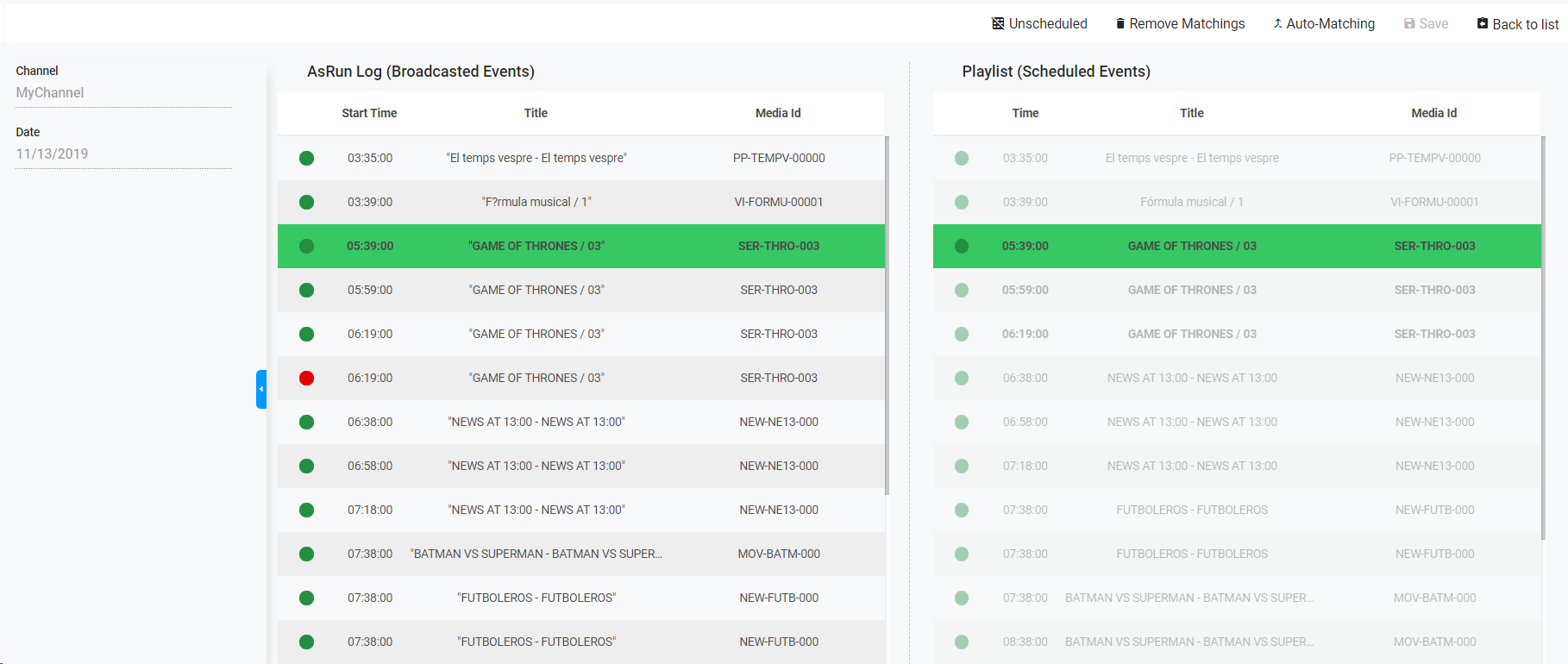

5. Show / Hide left panel

Click to hide the left panel and have more space to work with the weekly view.



Click to show the left panel




6

Broadcasted events

6. Broadcasted events

List of the broadcasted events with the real start time automatically extracted from the AsRunLog. of the current day.

7

Scheduled Events

7. Scheduled Events

List of the events of the VSNCrea playlist of the current day.

8

Unscheduled

8. Unscheduled

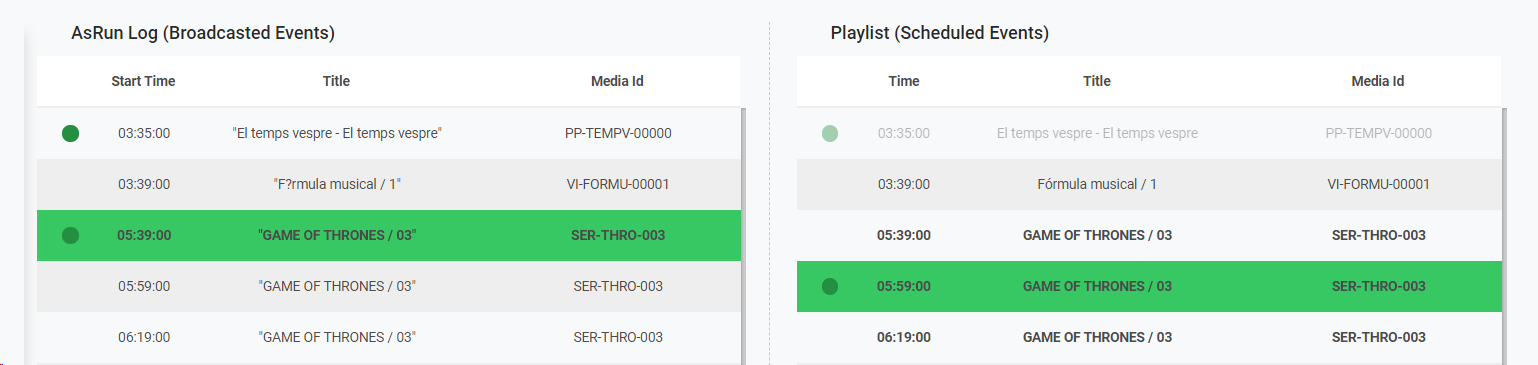

  • Select one event from the AsRunLog and click on to set it as unscheduled. At this moment the event will be mark with the label

  • Select one event from the Playlist to force its manual matching


9

Remove Matchings

9. Remove Matchings

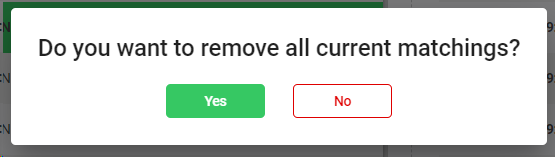

Use this option to remove all the existing matchings.



10

Auto-Matching

10. Auto-Matching

Use this option to match automatically the events based on the start time
.

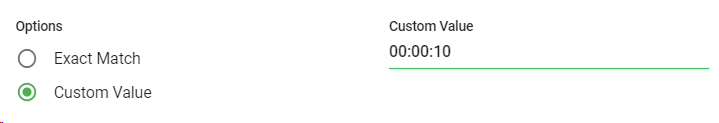

  • Choose the accepted start time distance between broadcasted events and scheduled events to make the Auto-Matching, between these options:
  • Exact Match. the system will use the exact start time of the events to do the auto matching


  • Custom value. Introduce a deviation time in HH:MM:SS


  • Click on


    All the events will be matched. The successful matchings will be marked with the label.  If there is some one that couldn't be matched, it will be marked with the label.


11

Save

11. Save

Click on to finish the current consolidation. At this moment the current day will become Consolidated.

12

Back tolist

12. Back tolist

Click to come back to the Consolidations list.. Make sure that you already saved all your changes.
