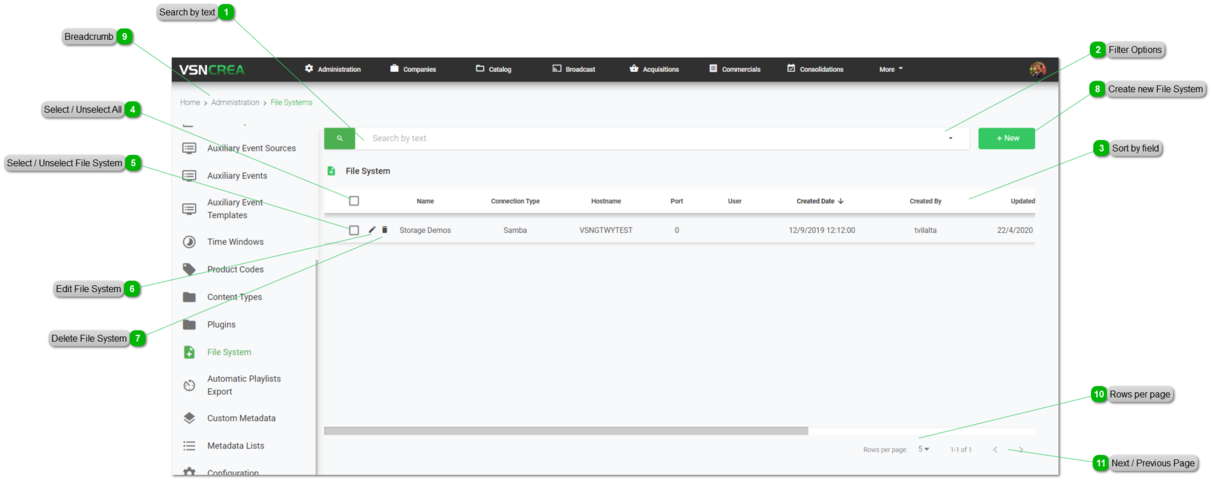

File Systems

In this section you can create different repositories to send material such as playlists.

To access, go to Administration >> File System

Search by text

Start typing a text and click Enter. The system will show you the results matching with your query

Top

Filter Options

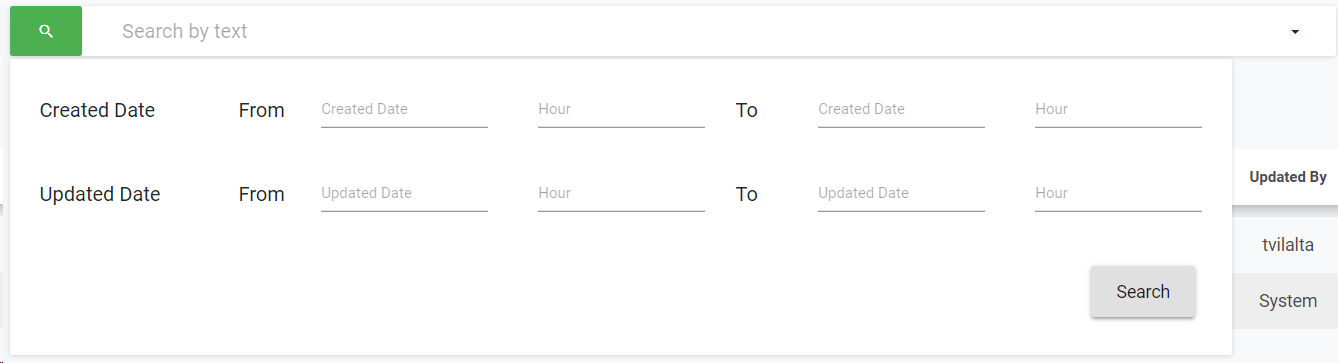

Click the drop down menu to display the filtering options. Select your filters and click on the "Search" button.

Click

to clear the value and remove the filter.

Top

Sort by field

You can click on any of the available fields in the columns, to order the results, ascending

or descending

Each user can also change the position of each column just using drag & drop.

Top

Select / Unselect All

Click on this checkbox to select or unselect all the elements of the list. When selected, the trash icon to delete all will be enabled.

Top

Select / Unselect File System

To select or unselect individual elements, click each checkbox. When some element is selected, the trash icon to delete them will be enabled.

Top

Edit File System

To edit an existing File System:

Mouse over on the element and click the icon;

or just one click on the selected row.

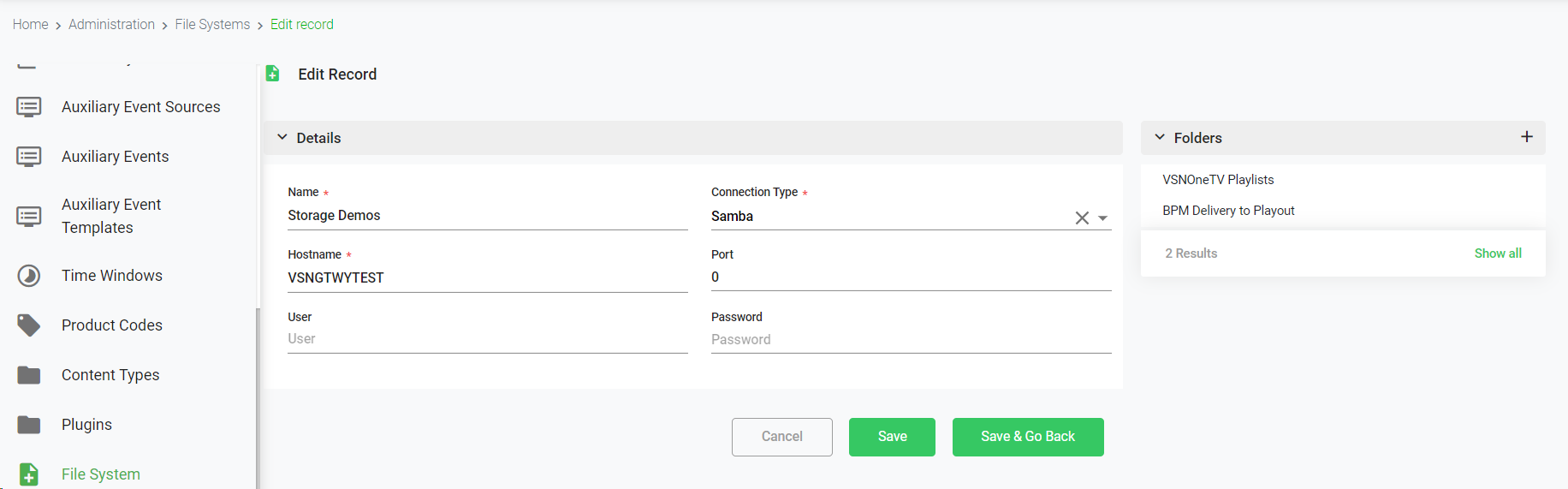

This will open the metadata form, to edit all the available metadata fields:

You can also create Folders related related the File System. For more information go to Folders

To cancel the edit, click "Cancel". To save the changes and keep in the edit form, click "Save". To save the changes and go back to the previous list, click "Save & Go Back".

Top

Delete File System

To delete a File System:

Mouse over the element, and click on the icon

Select or multi-select them using the checkboxes and click on the top trash icon

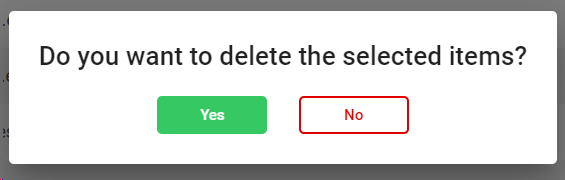

This action will show the following dialog:

Click

to delete the selected users, or

to cancel the operation.

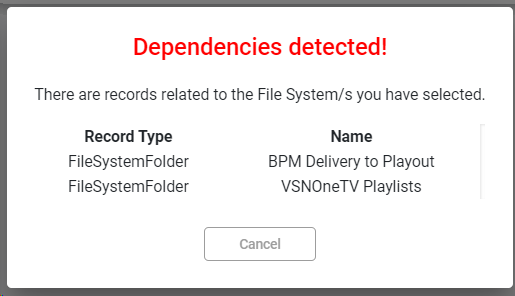

If the element you want to delete has dependences , it won't be deleted and the system will show you a list of existing dependences

Top

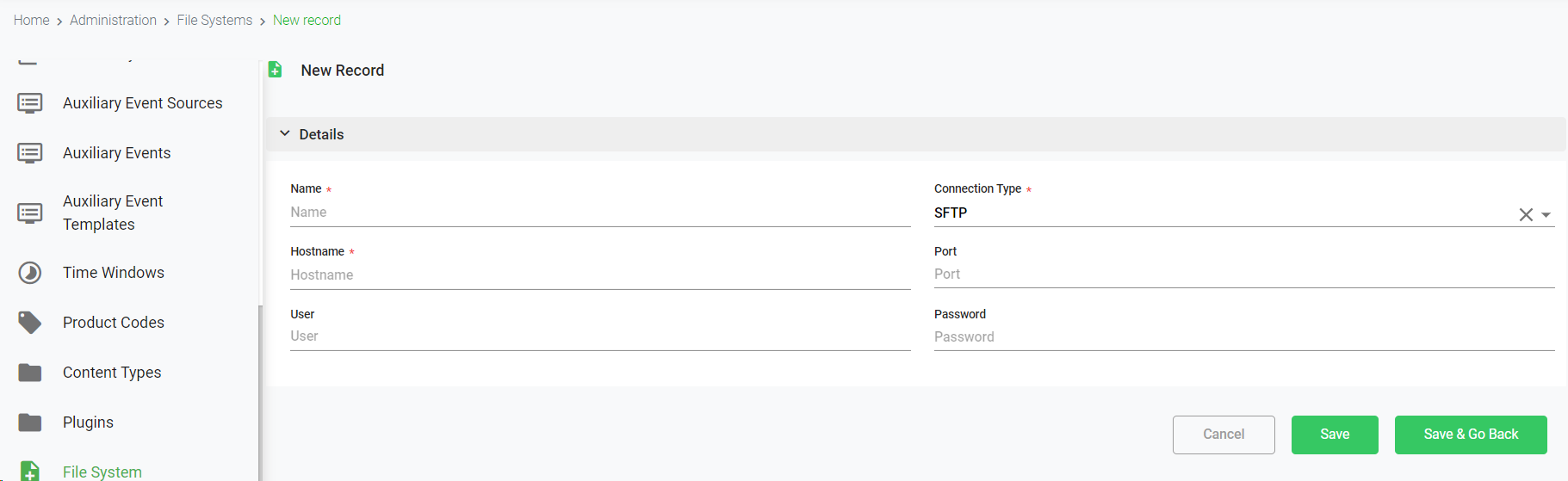

Create new File System

Click on this button to create a new File System.

This will open the metadata form, where you must introduce (at least) the mandatory fields.

Name. Name of the File System
Connection Type. Select how to access to the storage (FTP, SFTP, SMB, Amazon S3, Google Cloud Platform)
Hostname. Introduce the host name of the storage. The storage should accessible from VSNCrea server
Port. If needed, introduce the port to access to the storage.
User. If it requires authentication, introduce the user to access to the storage
Password. Introduce the password.

To cancel the operation, click "Cancel". To save the changes and keep in the creation form, click "Save". To save the changes and go back to the previous list, click "Save & Go Back".

Once a File System is created, you can also create Folders related related the File System. For more information go to Folders

Top
