Custom Export

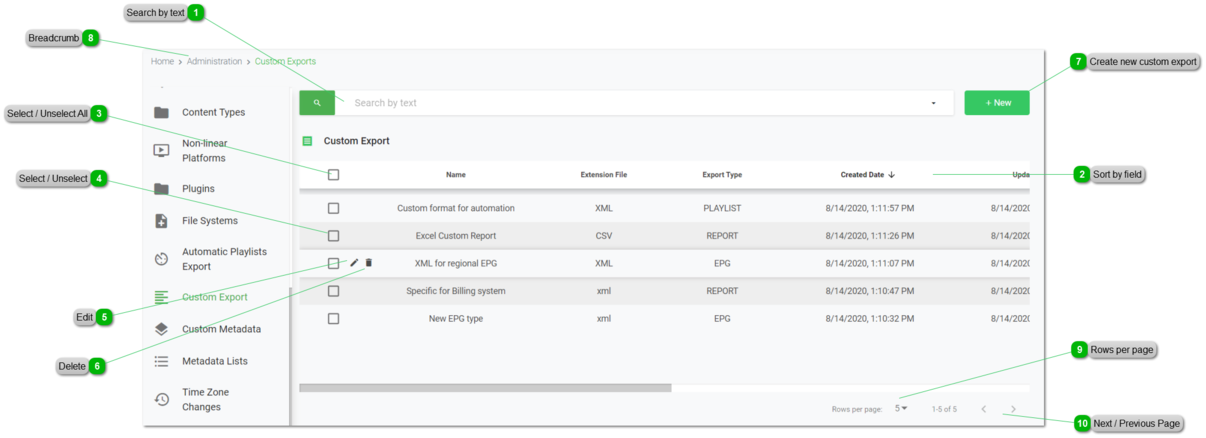

From the Custom Export menu, the system administrator is able to create specific and custom pattern files for exportation of playlists, EPGs or any custom report to different third party  systems,


Custom Export

1

Search by text

1. Search by text

Start typing a text and click Enter. The system will show you the results matching with your query

2

Sort by field

2. Sort by field
You can click on any of the available fields in the columns, to order the results, ascending  or descending

Each user can also change the position of each column just using drag & drop.
3

Select / Unselect All

3. Select / Unselect All

Click on this checkbox to select or unselect all the elements of the list. When selected, the trash icon to delete all  will be enabled.


4

Select / Unselect

4. Select / Unselect

To select or unselect individual elements, click each checkbox. When some element is selected, the trash icon to delete them will be enabled.


5

Edit

5. Edit

To edit an existing record:

  • Mouse over on the element and click the   icon;



  • or just one click on the selected row.

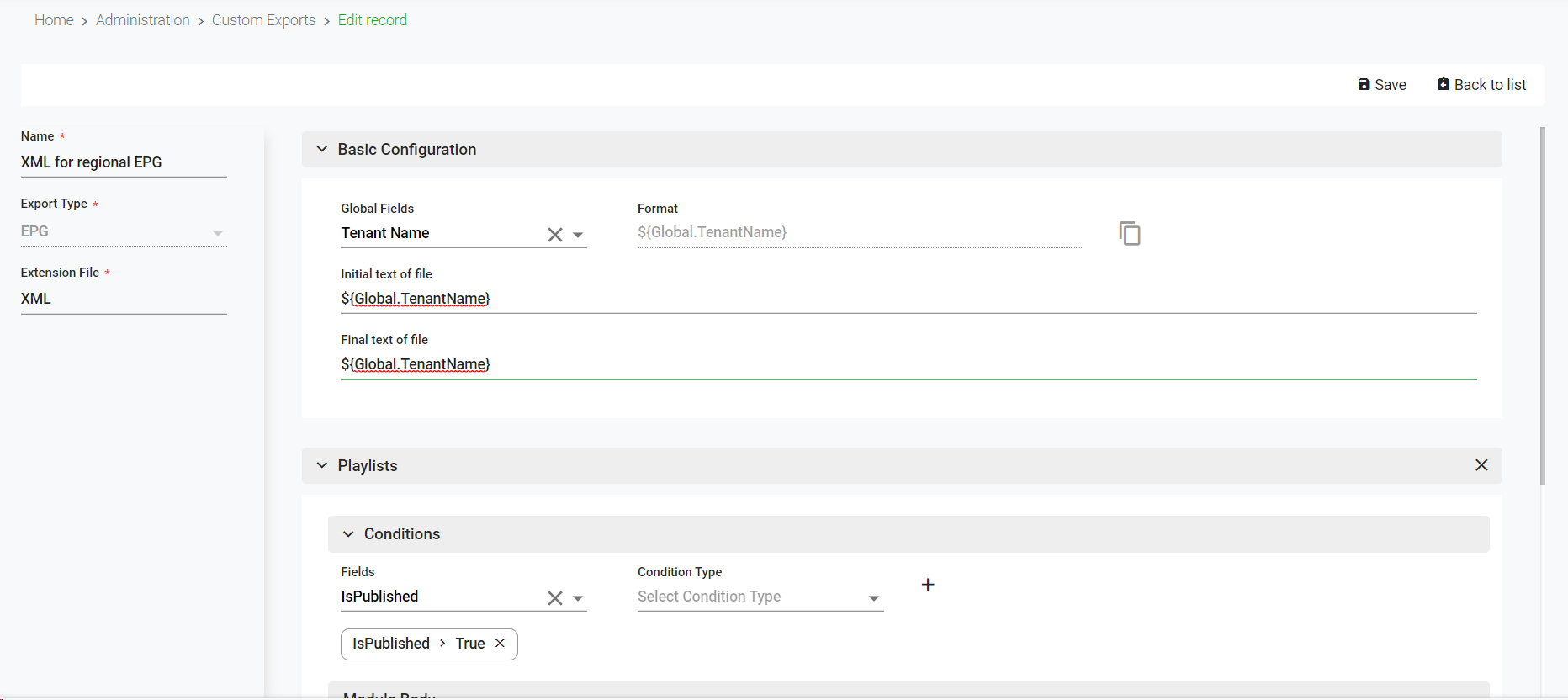

This will open the  existing element, with all the defined rules.




To save the changes and keep in the edit form, click "Save". To go back to the list, click "Back to list"

6

Delete

6. Delete

To delete a record:

  • Mouse over the element, and click on the icon

  • Select or multi-select them using the checkboxes and click on the top trash icon

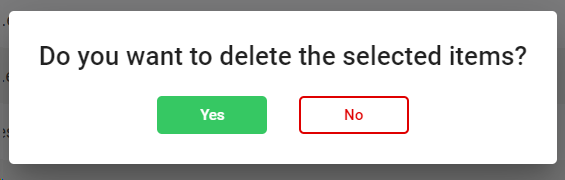

This action will show the following dialog:



Click to delete the selected users, or to cancel the operation.


7

Create new custom export

7. Create new custom export

Click on this button to create a new custom export.

1. First of all, introduce this information:

  • Name. Name of the custom export that will appear when exporting playlists or reports.

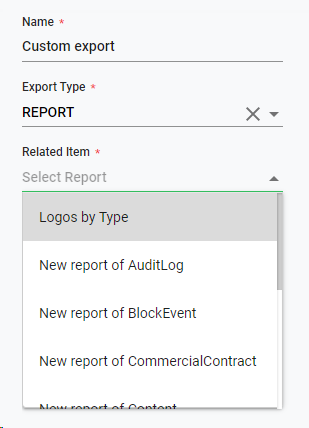

  • Export Type. Select the element that applies to the new custom export:


  • EPG. The custom export option will appear when exporting EPGs.
  • PLAYLIST. The custom export option will appear when exporting Playlists.
  • REPORT. The custom export option will appear when exporting the related report.


  • Extension File. Type the extension of the file (XML, CSV, TXT, ...)

    2. Click  "Save" to enable the form to define the rules

    3. Introduce the Basic Configuration, following the instructions.

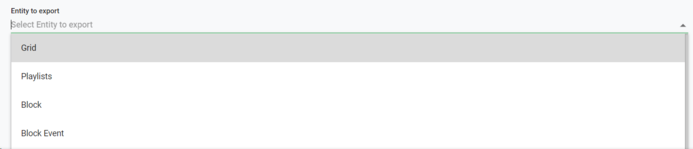

    4. Select the Entity to export. You will be able to introduce many different entities to be included in the export file.

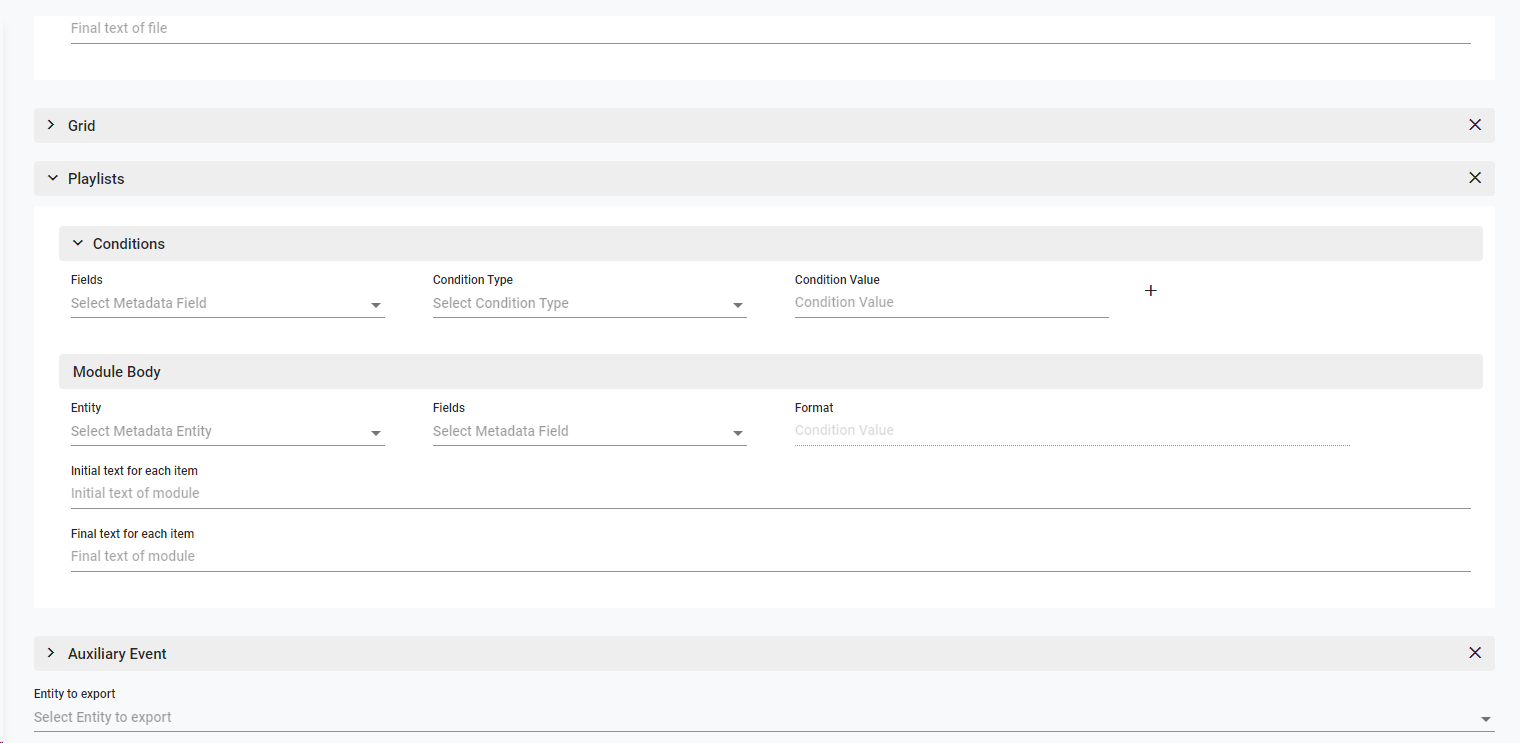

    5. In each of the entities, introduce the Conditions, and the Module Body, following the instructions.




To save the changes and keep in the edit form, click "Save". To go back to the list, click "Back to list"

The created custom export will automatically appear available for exporting in the corresponding element (playlists, reports, ...)

8

Breadcrumb

8. Breadcrumb
It shows the current page's location within a hierarchy of content to browse history and to provide the navigation tool.

9

Rows per page

9. Rows per page
Click on the drop down item to select the numbers of rows per page between the available options:


10

Next / Previous Page

10. Next / Previous Page
Click to go to the previous page or to go to the next page
